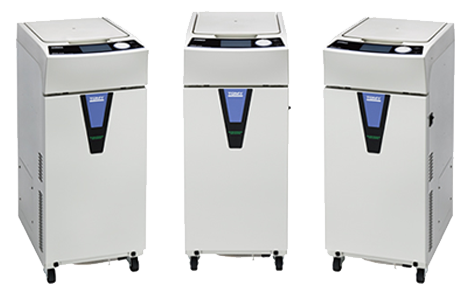

TOMY High-Speed Refrigerated Micro-Centrifuge MDX Series
One of the most innovative features of the TOMY High-Speed Refrigerated Micro-Centrifuge MDX Series is its unique “Rack-in- Rotor” system using a combination of carbon fiber rotors and a variety of drop-in racks made of resin for greater convenience, higher performance, and lower cost.
Rack-in-Rotor System
“Rack-in-Rotor” system is using a combination of carbon fiber rotors and a variety of drop-in racks made of resin for greater convenience, higher performance and lower cost.
- Stackable, drop-in/lift-out rotor racks for easy placement and removal
- Lightweight, yet stable rotation, and excellent acceleration/deceleration performance
- A wide variety of racks available at affordable prices
- A portable rack for sample tubes
Rack-in-Rotor CA-300 for MDX-310
■ Available up to 2ml x 72 tubes (stacked two racks)
■ 50ml/15ml x 12 conical tubes available
■ 14,000rpm with 96 well PCR plate x 2
Rack-in-Rotor CA-200 for MDX-210
■ Available up to 2ml x 48 tubes (stacked two racks)
■ 5ml x 12 tubes available
Rack-in-Rotor CA-100 for MDX-110
■8-strip PCR tubes, 0.5ml tubes, and 2ml tubes available
User Friendly and Safety Features
The lid interlock system electronically locks and prevents the lid from opening while in operation.
Hand guard device
・Switchable between approx. 20°and 70°
Safety adapter
Safety adapter equipped for prevention rotor rack sticking out from the rotor.
Comparison of power consumption between MX-307 and MDX-310
Controlling the motor fan drive during standby cooling leads to a reduction in power consumption.
* Reduction in electricity consumption between the MX-310 previous model MX-307. This figure may vary depending on the settings and performance of individual products.
Specifications
| Model | MDX-310 | MDX-210 | MDX-110 | ||||||||||
| Maximum Speed | 15,000rpm | ||||||||||||
| Maximum RCF | 21,890G | 20,380G | 20,380G | ||||||||||
| Maximum Capacity | 50ml× 4 | 30ml × 6 | 2ml × 24 | ||||||||||
| Speed Control System | Microprocessor feedback control | ||||||||||||
| Drive Motor | Induction motor | ||||||||||||
| Data Entry | Jog Dial with ENTER key and Touchscreen Numeric keypad available |
||||||||||||
| Temperature Setting Range | From -9°C to +35°C (1°C increment) | ||||||||||||
| Speed Setting Range | 300 to 15,000rpm (100rpm increments) | ||||||||||||
| RCF Setting Range | 10 to Maximum RCF (Less than 300G: 10G increments, Over 300G: 100G increments) | ||||||||||||
| Time Setting Range | 10sec～99min50sec (in 10sec increments） or (Free) for a continuous run | ||||||||||||
| Safety Devices |
|
||||||||||||
| Convenient Functions |
|
||||||||||||
| Refrigerant | HFC R134a (260g) | ||||||||||||
| Power Requirements | 1-Phase AC120V 60Hz 15A 1-Phase AC220-240V 50/60Hz 10A |
||||||||||||
| Rated Current | 120V : 12A 220-240V : 7A |
120V : 12A 220-240V : 7A |
120V : 11A 220-240V : 6.5A |
||||||||||
| Dimensions | 341 W × 491 D × 823 H （Lid in open position：1138 H, table height：787 H） |
||||||||||||
| Net Weight | 62 kg | ||||||||||||
| Accessories Included |
|
||||||||||||
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
TOMY High-Speed Refrigerated Micro-Centrifuge MDX Series
High Speed Refrigerated Micro Centrifuge MDX-310 / 210 / 110 dari TOMY dilengkapi dengan sistem “Rack-in-Rotor“. Sistem original dari TOMY ini, menggabungkan rotor super ringan berbentuk bucket dengan berbagai drop in racks yang terbuat dari resin untuk kenyamanan yang lebih baik dan kinerja yang lebih tinggi.
Rack-in-Rotor System
- Rak rotor dapat ditumpuk serta diangkat sehingga lebih mudah ditempatkan dan dilepaskan
- Rak portabel untuk tabung sampel
- Berbagai macam rack tersedia
Rack-in-Rotor CA-300 for MDX-310
Rotor Rack (L) (M) (S) available
Rotor Rack (L)
-
50 or 14ml × 4 tubes
20,130G
AR501-04
-
15ml × 8 tubes
20,380G
AR150-08
-
50 or 15ml × 4 tubes
20,380G
AR510-04
-
96 well PCR plate × 2
14,000rpm / 10,740G〜15,340G
PCR96-02
Adapter A96-01PC
-
Rack-in-Rotor
CA-300
MDX-310
Rotor Rack (S)
-
2(1.5)ml × 24 tubes
20,380G
AR015-24
-
0.5ml × 24 tubes
19,880G
AR005-24
-
PCR 8-wells tube × 8 lines
Outer:18,120G Inner:16,350G
AR002-64
-
Rack-in-Rotor
CA-300
MDX-310
Rotor Rack (M)
-
2(1.5)ml × 24 tubes
20,380G
AR015-SC24
-
5ml × 12 tubes
20,130G
AR050-12
-
14ml × 8 tubes
20,380G
AR141-08
-
30ml × 6 tubes
20,380G
AR300-06
.
-
Rack-in-Rotor
CA-300
MDX-310
-
*1 : Impossible to spin 50ml tubes and 15 ml tubes at the same time.
-
*2 : Adapter A96-01PC is required.
-
*3 : Contact TOMY for applicable tube details.
- Tersedia 2(1.5)ml × 72 tubes (ditumpuk tiga rak)
- 50ml / 15ml Conical × 4 tubes
- 96 PCR plate × 2
Rack-in-Rotor CA-200 for MDX-210
- Available up to 2(1.5)ml × 48 tubes (stacked two racks)
- 5ml × 12 tubes available
- Rotor Rack (M) (S) available
Rack-in-Rotor CA-100 for MDX-110
- 8-strip PCR tubes, 0.5ml tubes, and 2(1.5)ml tubes available
- Rotor Rack (S) available
User Friendly and Safety Features
Intuitive Operation Panel with Touchscreen
- Operation panel changes during the operation for easy
monitoring.
- Numeric keypad available
- 6 memory functions for quick and easy settings
Lid Interlock System
- Mengunci secara elektronik dan mencegah tutup terbuka saat beroperasi.
Hand guard device
- Dapat dialihkan antara sekitar 20° dan 70°
Safety adapter
- Dilengkapi adaptor pengaman untuk mencegah rak rotor menonjol keluar dari rotor.
Reminder function
Pengingat pemeriksaan tahunan
Indikator debu
Environmentally Friendly
ECO mode
Perbandingan konsumsi daya antara MX-307 dan MDX-310
Mengontrol penggerak kipas motor selama pendinginan standby, menghasilkan pengurangan konsumsi daya.
-
*Pengurangan konsumsi listrik antara MX-310 dengan model MX-307. Angka ini dapat bervariasi, bergantung pada pengaturan dan performa masing-masing produk..
Specifications
| Model | MDX-310 | MDX-210 | MDX-110 | |||
 |
 |
 |
||||
| Maximum Speed | 15,000rpm | |||||
| Maximum RCF | 21,890G | 20,380G | 20,380G | |||
| Maximum Capacity | 50ml × 4 | 30ml × 6 | 2(1.5)ml × 24 | |||
| Speed Control System | Microprocessor feedback control | |||||
| Drive Motor | Induction motor | |||||
| Data Entry | Jog Dial with ENTER key and Touchscreen Numeric keypad available |
|||||
| Temperature Setting Range | From -9°C to +35°C (1°C increment) | |||||
| Speed Setting Range | 300 to 15,000rpm (100rpm increments) | |||||
| RCF Setting Range | 10 to Maximum RCF (Less than 300G: 10G increments, Over 300G: 100G increments) |
|||||
| Time Setting Range | 10sec to 99min50sec (in 10sec increments) or (Free) for a continuous run |
|||||
| Safety Devices | Imbalance detector | Over-speed detector | ||||
| Lid interlock | Motor over-current detector | |||||
| Over-current circuit breaker | Lid open / close detector | |||||
| Overheat / Overcool detector | Rotor identification system | |||||
| Convenient Functions | Last run memory | Power saving (ECO) mode | ||||
| Soft Brake function | PRE-TEMP function | |||||
| FLASH (Short spin) function | Annual inspection indicator | |||||
| Memory function (six sets of operating parameters) | ||||||
| Heat exchanger overheat detector | Calendar date & time display | |||||
| Refrigerant | HFC R134a (260g) | |||||
| Power Requirements | 1-Phase AC120V 60Hz 15A 1-Phase AC220-240V 50 / 60Hz 10A |
|||||
| Rated Current | 120V : 12A 220-240V : 7A |
120V : 12A 220-240V : 7A |
120V : 11A 220-240V : 6.5A |
|||
| Dimensions | 341 W × 491 D × 823 H mm (Lid in open position：1138 H, table height：787 H) |
|||||
| Net Weight | 62 kg | |||||
| Accessories Included | Operator’s manual × 1copy, Digital Warranty Information × 1copy, Clear storage case for operator’s manual × 1piece, Rotor fixing knob × 1piece, Caster holder × 2pieces, Drain plug × 1piece, Attaching screw for clear case × 1piece, Power cord × 1piece, Hexagon wrench × 1piece |
|||||
