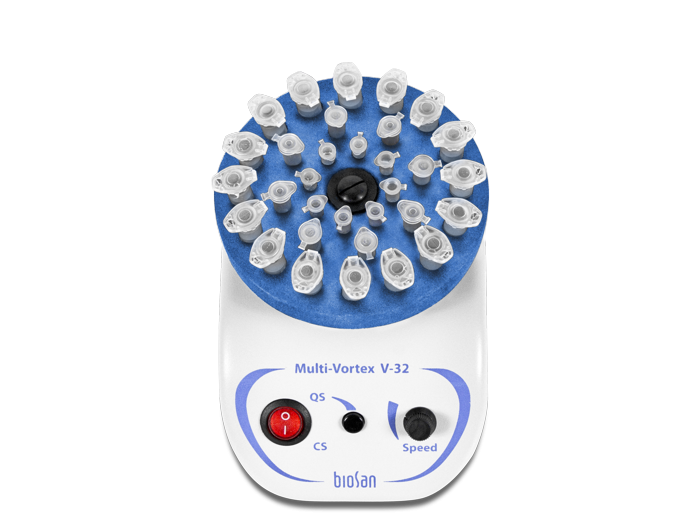

BIOSAN V-32 Multi-Vortex is intended for an intensive stirring of bacterial and yeast cells, washing from the culture medium, and extraction of metabolites and enzymes from cells and cell cultures.

It is different from V-1 by the possibility of mixing up to 32 tubes simultaneously.

Vortex is applicable for:

  • Performing various DNA operations — deproteinization of DNA/ protein complexes;
  • Purification of low-molecular DNA/RNA fragments in PCR-diagnostic.

Multi-Vortex has two operation modes:

  1. Continuous operation;
  2. Impulse operation.

BIOSAN Multi-Vortex V-32 is supplied with a 32-socket universal platform for Eppendorf type tubes up to 1.5 ml (1.5/0.5/0.2 ml — 16/8/8 sockets) PV-32 and PL-1 platform for mixing single tube up to 50 ml.

An optional 6-socket platform PV-6/10 for 10 ml tubes (max. tube diameter 15 mm) or PV-48 for 48 – 0.2 ml microtubes can be supplied on request.

BIOSAN V-32 Multi-Vortex Specification

Eccentric mixing principle +
Speed control range 500-3000 RPM
Acceleration 3 s
Maximum continuous operation time 24 h
Continuous / impulse operation +
Maximum load 70 g
Orbit 2 mm
Overall dimensions (W×D×H) 120x180x100 mm
Weight 1.5 kg
Input current/power consumption 12 V, 320 mA / 3.8 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V
