BIOSAN – RTS Series

Description

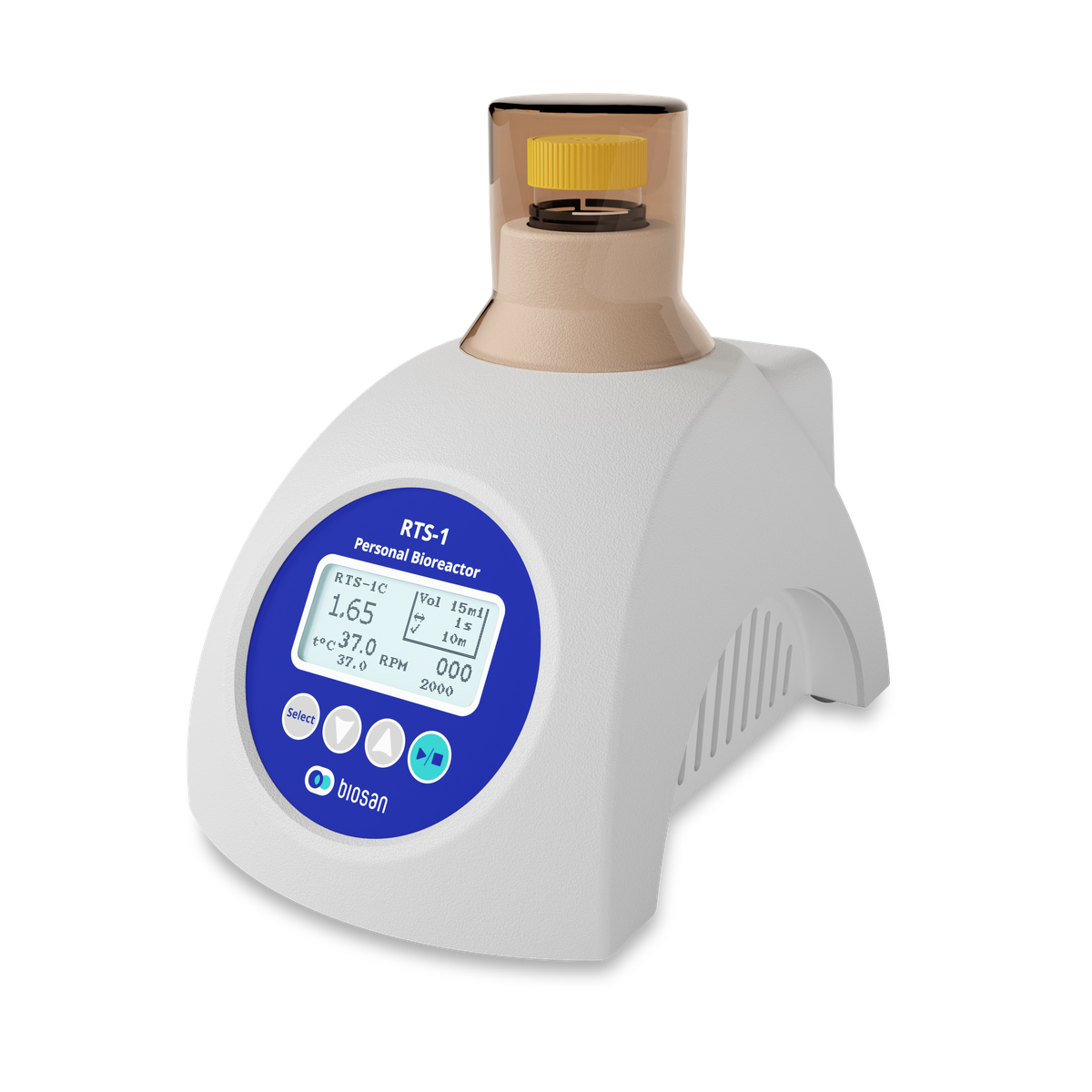

BIOSAN – RTS-1

RTS-1 is a personal bioreactor which utilizes patented Reverse-Spin® technology that applies non-invasive, mechanically driven, low energy consumption, innovative type of agitation where cell suspension is mixed by the single-use falcon bioreactor tube rotation around its axis with a change of direction of rotation motion resulting in highly efficient mixing and oxygenation for aerobic cultivation. Combined with a near-infrared optical system it is possible to register cell growth kinetics non-invasively in real-time.

  • Reverse–Spin® mixing principle in 50 ml falcon tubes allows achieving high kLa (h-1) up to 450 which is essential for efficient aerobic cultivation
  • Individually controlled bioreactor accelerates optimization process
  • Possibility to cultivate microaerophilic and obligate anaerobic microorganisms (not strict anaerobic conditions)
  • Reverse–Spin® mixing principle enables non-invasive biomass measurement in real-time
  • The near-infrared optical system makes it possible to register cell growth kinetics
  • Free of charge software for storage, demonstration, and analysis of data in real-time
  • Compact design with a low profile and small footprint for personal application
  • Temperature control for bioprocess applications
  • Active cooling for rapid temperature control, e.g. for temperature fluctuation experiments
  • Task profiling for process automatization
  • Cloud data storage to remotely monitor the process of cultivation while at home or using a mobile phone

Software features:

  • Real-Time cell growth logging
  • 3D graphical representation of OD or growth rate over time over the unit
  • Pause option
  • Save/Load option
  • Report option: PDF and Excel
  • Connect up to 12 units (recommended) simultaneously to 1 computer
  • Remote monitoring option (requires internet connection)
  • Cycling/Profiling options
  • User manual calibration possibility for most cells

Typical applications:

  • Fermentation real-time growth kinetics
  • Clone candidate screening
  • Protein expression
  • Temperature stress and fluctuation experiments
  • Media screening and optimization
  • Growth characterization
  • Inhibition and toxicity tests
  • Strain quality control





BIOSAN – RTS 1C

RTS-1C is a personal bioreactor which utilize patented Reverse-Spin® technology that applies non-invasive, mechanically driven, low energy consumption, innovative type of agitation where cell suspension is mixed by the single-use falcon bioreactor tube rotation around its axis with a change of direction of rotation motion resulting in highly efficient mixing and oxygenation for aerobic cultivation. Combined with a near-infrared optical system it is possible to register cell growth kinetics non-invasively in real-time.

  • Reverse–Spin® mixing principle in 50 ml falcon tubes allows achieving high kLa (h-1) up to 450 which is essential for efficient aerobic cultivation
  • Individually controlled bioreactor accelerates optimization process
  • Possibility to cultivate microaerophilic and obligate anaerobic microorganisms (not strict anaerobic conditions)
  • Reverse–Spin® mixing principle enables non-invasive biomass measurement in real-time
  • The near-infrared optical system makes it possible to register cell growth kinetics
  • Free of charge software for storage, demonstration, and analysis of data in real-time
  • Compact design with a low profile and small footprint for personal application
  • Temperature control for bioprocess applications
  • Active cooling for rapid temperature control, e.g. for temperature fluctuation experiments
  • Task profiling for process automatization
  • Cloud data storage to remotely monitor the process of cultivation while at home or using a mobile phone

Software features:

  • Real-Time cell growth logging
  • 3D graphical representation of OD or growth rate over time over a unit
  • Pause option
  • Save/Load option
  • Report option: PDF and Excel
  • Connect up to 12 units (recommended) simultaneously to 1 computer
  • Remote monitoring option (requires internet connection)
  • Cycling/Profiling options
  • User manual calibration possibility for most cells

Typical applications:

  • Fermentation real-time growth kinetics
  • Clone candidate screening
  • Protein expression
  • Temperature stress and fluctuation experiments
  • Media screening and optimization
  • Growth characterization
  • Inhibition and toxicity tests
  • Strain quality control
